Product Overview
Independently developed and manufactured by our company, the ferrosilicon tapping robot system is equipped with a highly automatic control system and high-precision hydraulic servo control system. The highly automatic control system boasts distinctive advantages including intelligent automatic control, simple operation, automatic fault diagnosis, high temperature resistance and anti-electromagnetic interference performance. The hydraulic servo system features outstanding merits such as rugged durability, flexible transmission, high power density, high positioning accuracy and fast response speed, and has been widely applied in construction machinery and industrial control fields.
Technical Features
The ferrosilicon tapping robot system mainly consists of an intelligent control system, hydraulic transmission system, mechanical transmission system, video monitoring system and tool storage system. Operators can perform one-touch tapping, one-touch tap-hole plugging and other operations via the human-machine interactive touch screen in the central control room. This tapping machine system frees tapping workers from harsh on-furnace working conditions featuring high ambient temperature, heavy labor intensity and high safety risks. It fully meets the production requirements of ferrosilicon furnace operations and delivers significantly improved working efficiency.
Applications
Ferroalloy is an indispensable raw material for the iron and steel industry as well as the machinery casting sector. It has two primary applications: first, as a deoxidizer to remove excess oxygen from molten steel, with common varieties including ferrosilicon, ferromanganese, ferroaluminum, calcium silicon, silicomanganese and so on; second, as an alloying agent to adjust steel composition and thereby modify the properties of steel products. There is a wide range of ferroalloy grades, mainly silicon-based, manganese-based, chromium-based and nickel-based alloys. Among them, silicon-based and manganese-based alloys are the most prevalent and account for the largest share.

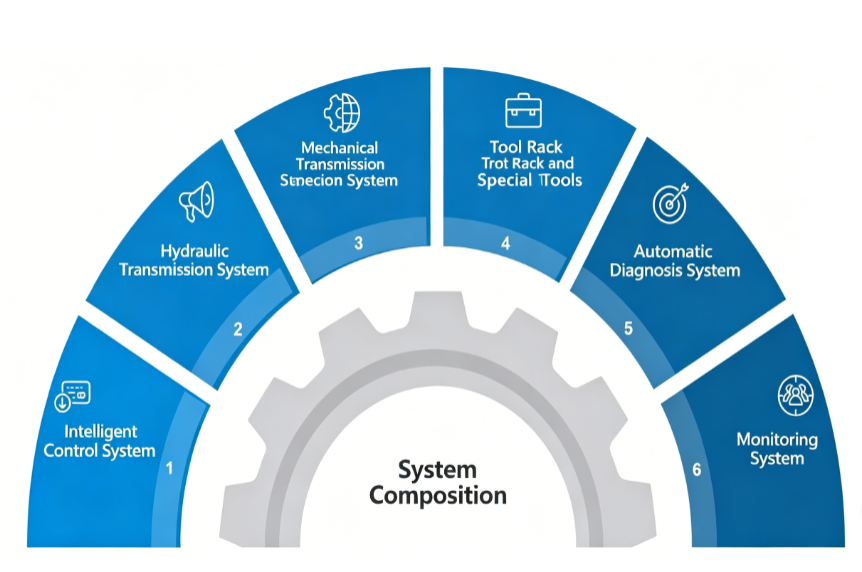

System Composition

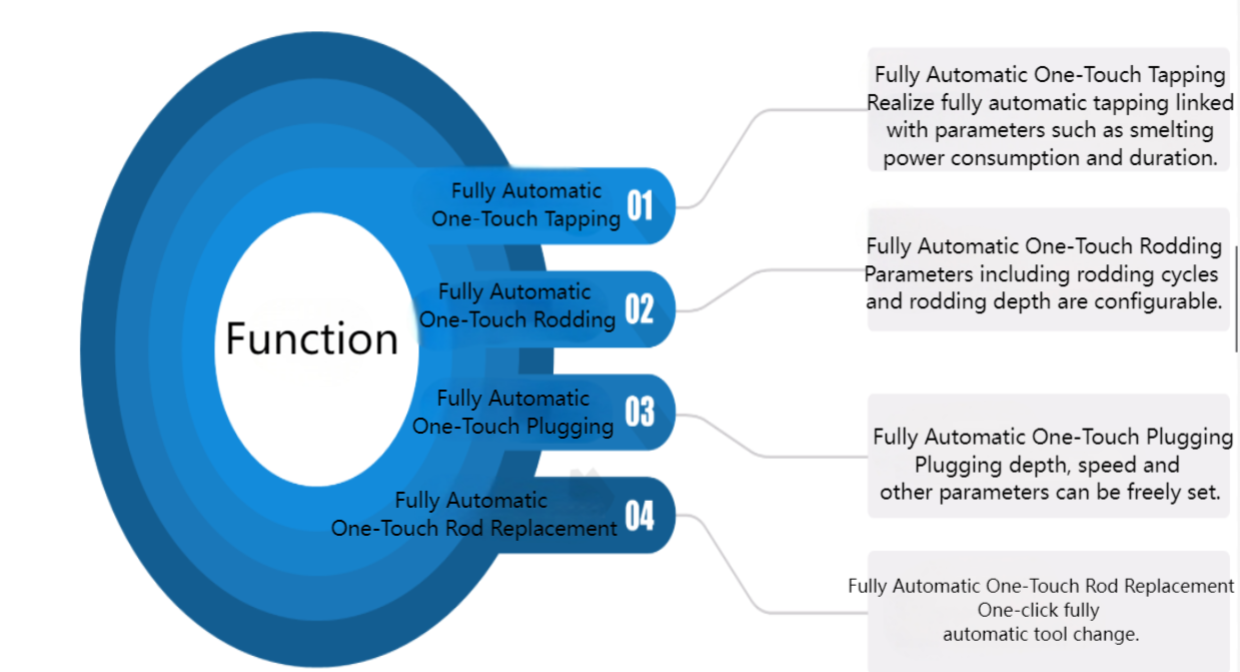

Functions
Tapping operators can operate the control terminal in the remote control room to command the robot to complete the full sequential tapping process of a metallurgical furnace. By manipulating the control terminal, operators enable the robot to perform fully automatic one-touch tapping, fully automatic one-touch rodding, fully automatic one-touch tap-hole plugging and fully automatic one-touch rod replacement.

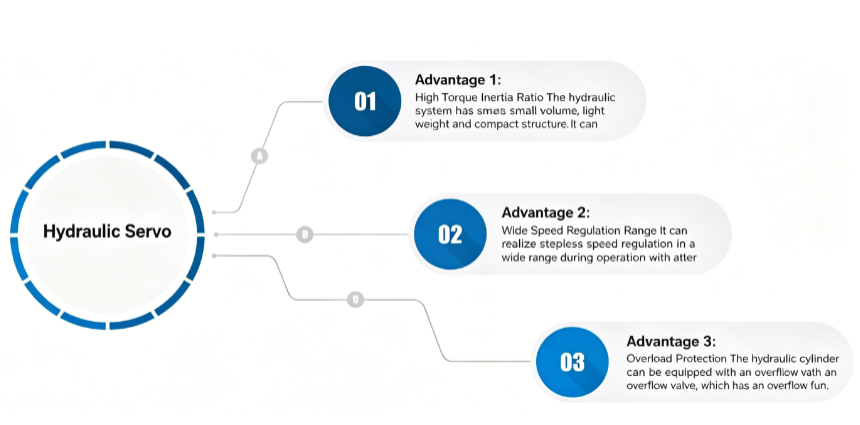

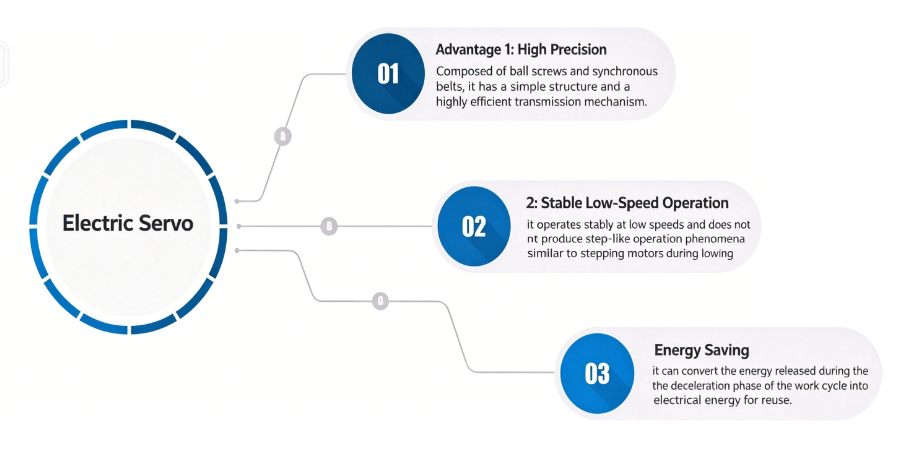

Advantages of Electrical and Hydraulic Servo Systems
